AICR204 dual filters switch for day and night vision 650nm IR-CUT filter M12 lens mount
AICR204 dual filters switch for day and night vision 650nm IR-CUT filter M12 lens mount
$1.80
$1.80
Availability:
In stock
Out of stock
SKU
AICR204-M12
Hole Pitch
20mm
Lens Mount
M12

Product Description

AICR204 dual filters switch for day and night vision 650nm IR-CUT filter M12 lens mount



Effective area8.0 * 6.8 mm
Operating environmenttemperature -20~70°C, humidity 10~85%
Consumed power0.274w At input 3.3V
Rated current moment0.083A At input 3.3V
Consumed power3.6w At input 12V
Rated current moment0.3A At input 12V
A direct current resistance40Ω/6<span0Ω±10%
drive voltage3.3-12V
Pulse time100-500ms
<spanHole Distance<strong20mm<span / <strong22mm
Working life100000 times
Storage environmenttemperature -30~70°C, humidity 10~85%
Metrial
Zinc alloy
Screw Hole distance
20mm

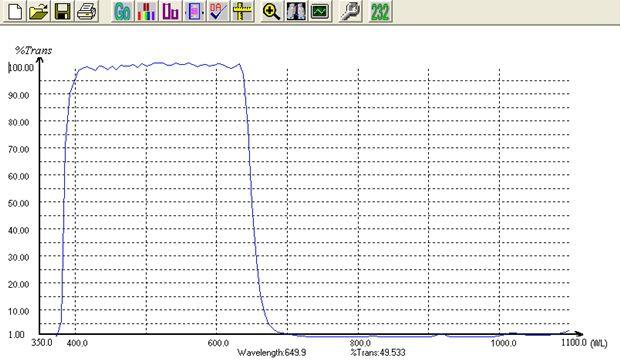

IR-CUT filter:

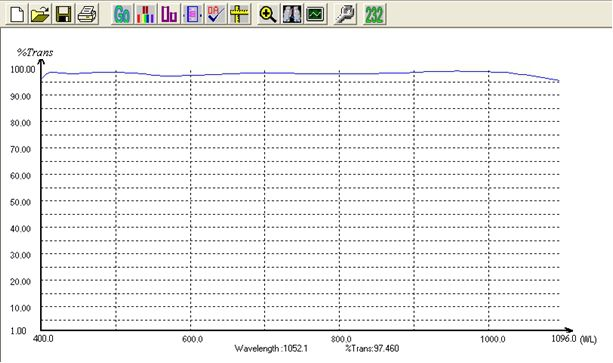

AR Filter:
