H662AZ5X 90fps Starvis2 1080P 1/2.8" Sony Starlight IMX662 + HI3516AV300 2MP 1080P 2.7-13.5mm Motorized zoom IP Camera Module
H662AZ5X 90fps Starvis2 1080P 1/2.8" Sony Starlight IMX662 + HI3516AV300 2MP 1080P 2.7-13.5mm Motorized zoom IP Camera Module
H662AZ5X 90fps Starvis2 1080P 1/2.8" Sony Starlight IMX662 + HI3516AV300 2MP 1080P 2.7-13.5mm Motorized zoom IP Camera Module
H662AZ5X 90fps Starvis2 1080P 1/2.8 Sony Starlight IMX662 + HI3516AV300 2MP 1080P 2.7-13.5mm Motorized zoom IP Camera Module
$85.00
$85.00
Availability:
In stock
Out of stock
SKU
H662AZ5X
Hole Pitch
22mm
Image Sensor
IMX662
Resolution
2MP 1080P
Pixel Size
2.9μm
Image Sensor Size
1/2.8"
Video Coding
H.264
H.265+

Product Description

Features:
  • 1/2.8" 2MP Starvis 2 Sony IMX662 CMOS sensor
  • Standard 38*38 dual board structure
  • Support H.265+, H.265, H.264 encoding
  • Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
  • support IR/full color/Dual light mode, support PWM dimming
  • Support standard ONVIF, GB28181
  • Support motorized zoom (optional), auto iris (optional)
  • Provide SDK development kit, support secondary development
  • Intelligent functions: motion detection



Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)






Specification
SOCHi3516AV300，Cortex   A7@900MHz
Sensor1/2.8" Progressive   Scan CMOS IMX662
Min illuminationColor：0.0001Lux@F1.0(AGC ON), Black &   White：0Lux(IR ON)
WDR100 dB

Main Stream Resolution90 fps@（1920 × 1080，1280 ×960，1280   × 720）
Sub Stream Resolution90 fps@（704×576，640×480）
CodingH.265+/H.265/H.264
Bitrate32 Kbps~16 Mbps
H.264 codingBaseline Profile/Main   Profile/High Profile
H.265 codingMain Profile
BitrateCBR，VBR
OSDSupport
Image EnhanceBacklight   compensation, glare suppression, 3D digital noise reduction, fog transmission
Image settingsRotation, saturation,   brightness, contrast, sharpness, AGC, white balance, day/night conversion support
Lens2.7-13.5mm optical motorized zoom, F1.3

Audio port1ch input, support mic   / line in; 1ch output support earphone or amplifier
Audio sampling bitrate8 kHz
Audio coding formatG.711u law / G.711a   law / G.726 / AAC-LC

Preview channels8ch MAX
ProtocolHTTP, HTTPS, TCP/IP,   UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol
Browser

Preview with plugin：IE10，IE11

Preview with local service：Edge，Chrome，Firefox   etc.


Network1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive
Audio1ch input, support for   microphone or pickup input; 1ch output, support for connecting headphones or   amplifiers
LED lightSupport photosensitive   detection input, support PWM dimming
USB1 USB2.0 (5V Power)，Support 4G/WiFi (Optional)
ResetSupport
CVBS outputNot available

Size38x38x18mm，38mm dual board structure
Weight20 g
Working temperature-20°C ~ +60°C
Power consumptionDC12V Power input,   1.2W (Max @30fps), 1.8W (Max @60fps), 2.4W (Max @90fps)

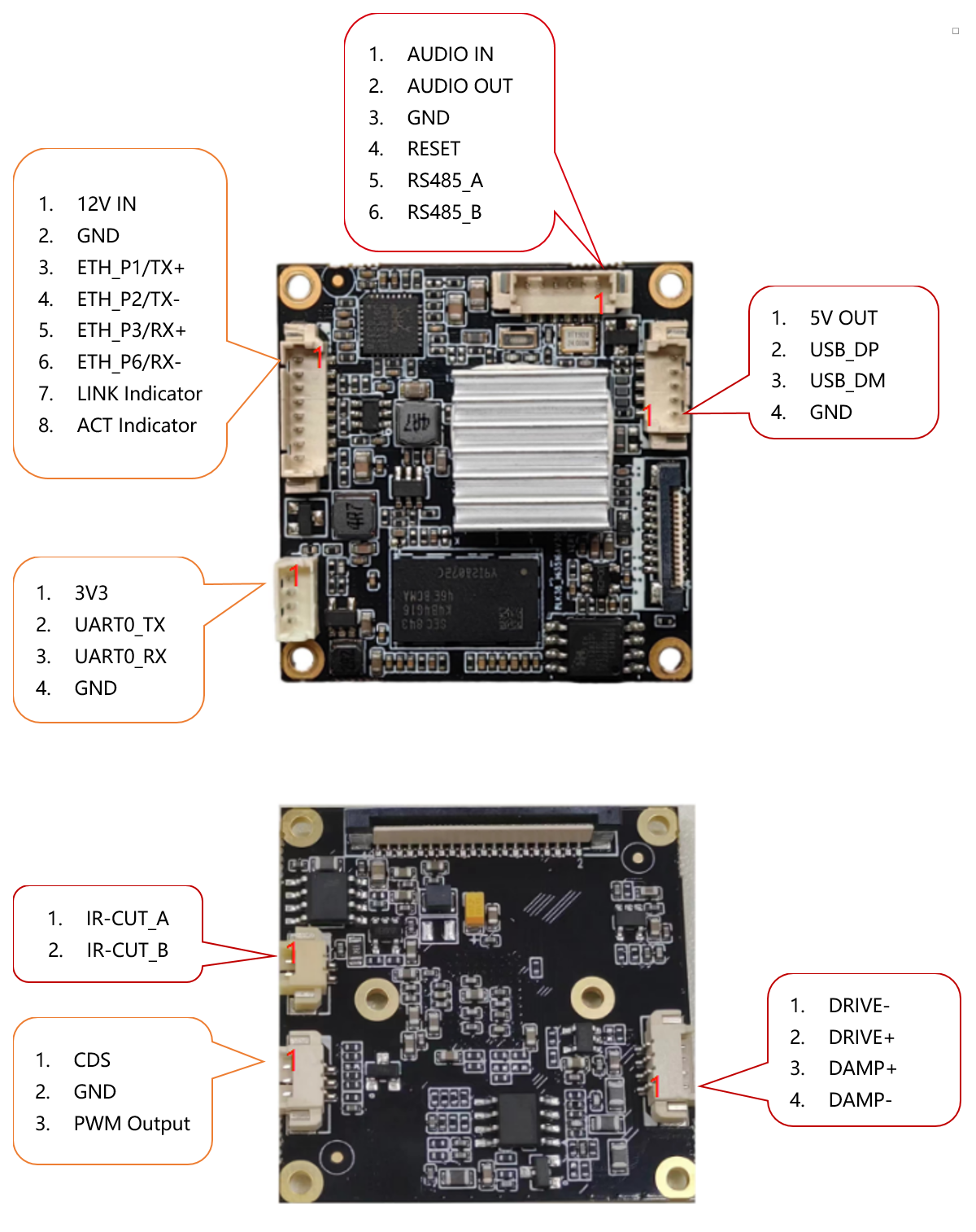

Pin definition:




Packing list:
