ICR223-CS 22mm CS mount IR-CUT dual filters switch 1/1.8 IMX385 IMX178 IMX226
$4.20
$4.20
Availability:
In stock
Out of stock
Lens Mount
Product Description
Packing list:
1 x CCTV Camera IR-CUT Filter 8MP (Hole distance 22mm）

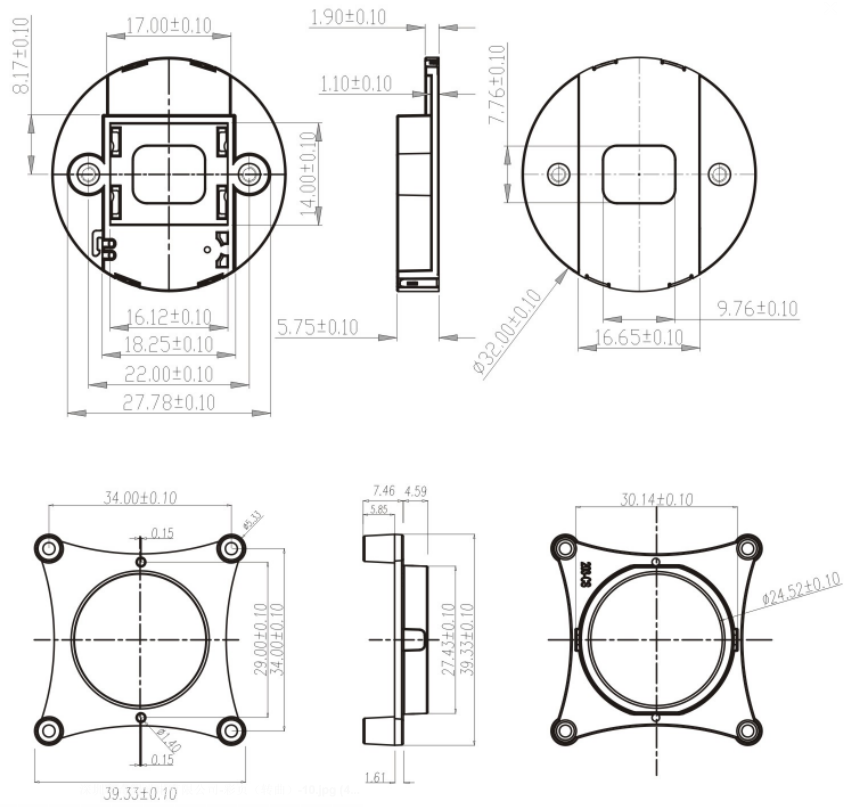

1 x CS Lens Holder (38mm * 38mm)
-----------------------------------------------------------------------------------------
1/2" And 1 / 1.8" CMOS SONY IMX178 IMX185 Sensor Dedicated
1/1.8" Large size infrared filter
| IR-CUT Removable module parameter | |
| Filter can use effective area | 10.0*8.0mm |
| Operating environment | temperature -20~70°C humidity 10-85% |
| Consumed power | 0.625w at input 5V / 3.6w at input 12V |
| Rated current moment | 0.125A at input 5V / 0.3A at input 12V |
| A direct current resistance | 40Ω ±10% |
| drive voltage | 3.3-12V |
| Pulse time | 100-500ms |
| Storage environment | temperature -30~70°C humidity 10-85% |

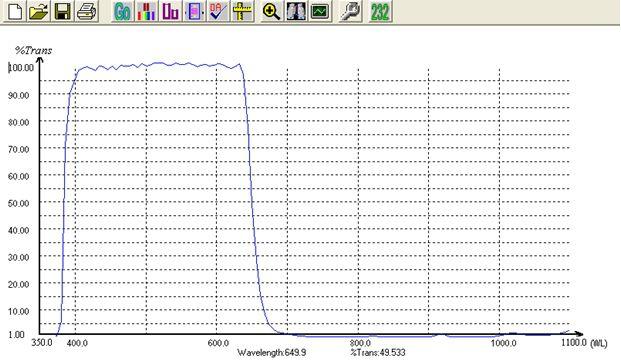

IR-CUT filter:
| Wavelength(nm) | Transmission(%) | Wavelength(nm) | Transmission(%) |
| 400nm | T>70% | 650±10nm | T=50% |
| 450~560nm | T>90% | 700~1100nm | T<5% |

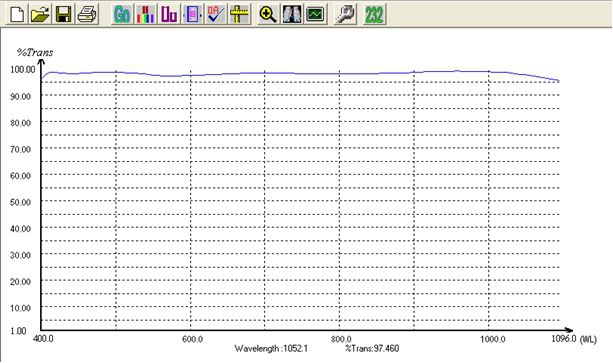

Auto-regressive filter (AR-filter):
| Wavelength(nm) | 400 | 450-700 | 750-1100 |
| Transmission(%) | >90% | >90% | >90% |
| Judgment | OK | OK | OK |

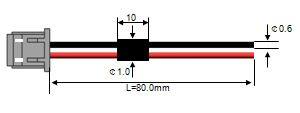

40 ohms resistor wire color is red and black 1.25 * 2 p * 80 mm * 0.6 mm.
| Serial number | The polarity of the power | State | ICR window filter | |
| Black | Red | |||
| 1 | + | - | Color mode in the daytime | IR-CUT filter |
| 2 | - | + | Black and White mode in the evening | AR filter |
Note:

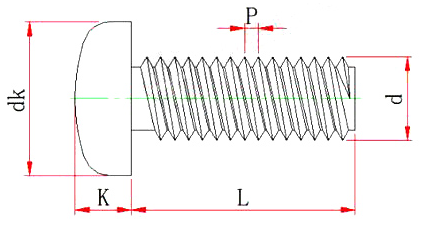

Need Screw like below to mound this holder on camera board and fix lens.
Model: PM2.0x4 / PM2.0x5
L: 4mm / 5mm
P: 0.4mm
d: 2mm
DK: 3.5mm
K: 1.3mm
