IR0117-M12 8MP 1/2.5" 20mm IR CUT filter M12 lens mount double filter switcher 7.9mm height
IR0117-M12 8MP 1/2.5 20mm IR CUT filter M12 lens mount double filter switcher 7.9mm height
$1.50
$1.50
Availability:
In stock
Out of stock
SKU
IR0117-M12
Hole Pitch
20mm
Lens Mount
M12
Image Sensor Size
1/2.5"

Product Description

For Fisheye lens, Pinhole lens which is short.Couldn't focus with ICR204-M12.

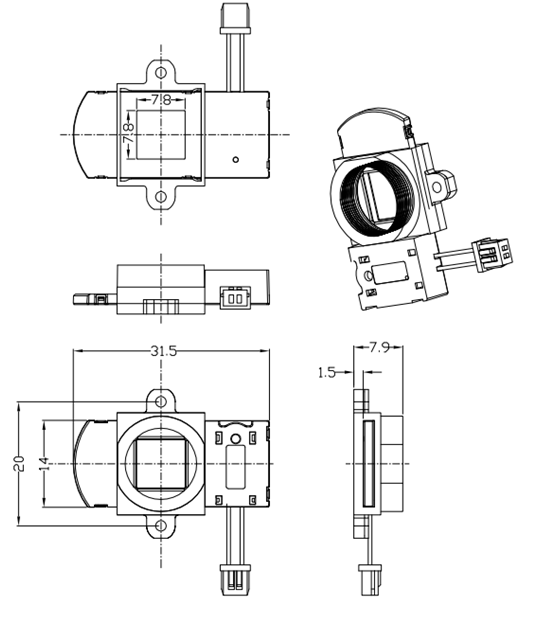

Please check draw of the item and your lens.


1.Product  Features

This product is suitable for the IP camera,high-definition cameras millions of pixels,the infrared camera,the bolt and other kinds of photographic equipment,used to filter infrared,let it pass or cut-off,fixed a problem with polarized light during the day,night brightness of ascension.



2.Performance Parameter

No.

Items

Specification

2-1

Resistance

25Ω±3Ω(25°C)

25Ω±3Ω(under the normal temperature25℃)

2-2

Rated Voltage

1.Close    Open:+3.3V

2.Open    Close:-3.3V

2-3

Operating Voltage

3.3~12.0V   DC







2-4







Actuation Direction

1. The red wire of by positive voltage,the wire negative

Close    Open.(Dummy Glass)

2. The red wire of by negative voltage,the wire positive

OPEN    CLOSE.(IR Filter)





2-5



Actuation

Whole   posture,actuation range is incomplete,no movement

Do   not interference,electrify time of 100~200ms



2-6



Performance Guarantee

Temperature   range:-20℃~+80℃, Actuation meets

2-1, 2-2, 2-3 performance.

3.Reliability Test

No.

Items

Specification









3-1









High And Low

Temperature Test

1.-20℃/after 24h, 6h at room temperature, 2-2 performance Guarantee actuation, its performance can be satisfied.

2.+80℃/after 24h, 6h at room temperature, 2-2 performance Guarantee actuation, its performance can be satisfied.

















3-2













Hot and   Cold Impact

Cycle 6 times as required, normal temperature after 6h, test


    1Cycle Performance can meet the 2-2action features.


    -20℃         +80℃         0










3-3









Vibration   Test

After shipment in accordance with the standards for packaging,10~55hz frequency.The amplitude is1.0mm,3 direction test,its total test times 30minutes,again after the  completion of the test,its performance can meet 2-2 all the features in the project.







3-4







Drop   Test

The product is placed on the fall,height of 1m,3the surface/2back,a total of 6times.After   further testing, test performance can meet 2-2 all the features in the project.





3-5





Noise

1.There is no influence of mechanical noise and practical.

2.There is no influence of electrical noise in practical.







3-6





life

    100ms         100ms         100ms         -3.3V         0V         3.3V Temperature:+20℃±5℃,humidity   under the condition of 60% plus or minus 10% Close to Open,Close/1.2s a   cycle,after 50000times actuation,against the foot 2-2 performance guarantee.


4.Optical Properties

No.

items

Specification

4-1

Cut Off –Reference Wavelength(nm)

640±10nm

4-2

The IR FilterTransmittance

Transmittance   between 420-630nm，Tave≧90%

4-3

The Dummy Glass Transmittance

Transmittance   between 390-1100nm，Tave≧91%

4-4

(IR)

(AR)

1.Width(X) ：8±0.05mm

2.Length(Y) :9±0.05mm

3.Thickness(T) :0.21mm

5.Shipment Inspection Specifications

No.

Items

Condition

5-1

Appearance

Nondestructive   mark、rusty spot、stain、lack of material

5-2

Critical Size

Meet tolerance range

5-3

Shipment inspection Specification

1.Temperature:+20℃±5℃

2.Often 60% plus or minus25%

3.Close    Open：+3.0v

4.Open    Close：-3.0v

6-4

Features

Meet Specification clause 2-1~2-6

6.Storage Conditions

6-1.Not in high temperature,high humidity,corrosive gas,organic gas deposit environment.

6-2.Do not store more than 6 months.

6-3.Does the welding using lead-free solder(Sn-Ag-Cu)

IR Filter Spectrum


Dummy Glass Spectrum




Function:
1. Fixed daytime color cast problems, enhancing the brightness at night. IR-CUT filter switch automatically according to external light along with the strength of automatic switching, making the image to achieve the best results. That is, during the day or night, the dual filter can automatically switch filters, therefore, whether in the next day or night, can get the best imaging results.

 2. According to the instruction automatic switch infrared cut-off and the full spectrum glass, day and night switch, automatic positioning, in order to achieve infrared end filter work during the day time, sunshine is vivid, restore the true color. Full spectrum glass work at night, and increase low illumination, night vision is very clear.

 3. Use on the camera board, to modify the problem of partial color, out of focus, let video images do not lose focus, unbiased color and excellent resolution.

 4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.



Packaging included: 1pcs 20mm strong magnet IR-CUT switch M12 lens mount holder

Remarks:
    Need Screw like below to mound this holder on camera board and fix lens.

Model: PM2.0x4 / PM2.0x5
     L: 4mm / 5mm
     d: 2mm
     dk: 3.5mm
     K: 1.3mm
