Product Description
Precision Lens Elements, Assure the Stable Quality at Any Environments.
Environment-friendly Materials Used for ROHS and FCC Compliant.
| Model: | L2.8-M12-4K-F2.4 | |||
| Parameter of Lens | ||||
| Pixel | 8MP | |||
| Image Circle | Diameter 7.5mm | |||
| Image Format | 1/2.5" (16:9) 1/2.8" | |||
| Focal Length | 2.8±5% mm | |||
| Aperture | F2.4±5% | |||
| Mount | M12×0.5 | |||
| Field Angle D×H×V(°) | ° | 1/2.5" (IMX274) | 1/2.5" (IMX317) | 1/2.8" (IMX415) |
| D | 112 | 109.5 | 103 | |
| H | 100 | 101.4 | 94 | |
| V | 80 | 68 | 62 | |
| Optical Distortion | <2.0% | |||
| CRA | <19° | |||
| Dimension | Φ18×18.26mm | |||
| Weight | 6g | |||
| Flange Back Focal Length | 3.74mm | |||
| Back Focal Length | 4.92mm | |||
| Structure | 4G2P (+IR650) | |||
| IR | IR-CUT filter 650nm (optional) | |||
| Operation | Iris | FIX | ||
| Focus | / | |||
| Zoom | / | |||
| Operating temperature | -20°C~+70°C | |||

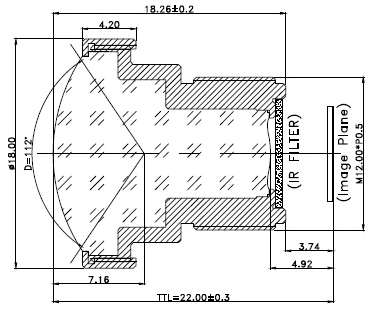

| Size | ||||
![]() | ||||
