L3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
L3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
L3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
L3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
L3.47-M12-13MP 13MP 4K 3.47mm Lens 168degree M12 Wide angle Camera lens 1/1.7" IMX226
$13.50
$13.50
Availability:
In stock
Out of stock
SKU
L3.47-M12-13MP
Image Sensor
IMX334
Lens Mount
M12
Resolution
12MP
Image Sensor Size
1/2.5"
Aperture
F2.6

Product Description

Resolution13 Megapixel
Sensor Type1/1.7" IMX226
Focal length3.47mm
ApertureF2.2
MountM12
Field Angle
D×H×V(°)
1/1.7" (IMX226)1/2" (IMX385)
D168°145°
H127.8°124°
V93.6°68°
TV Distortion<20%<17%
Relative Illumination>42(±5)%>50(±5)%

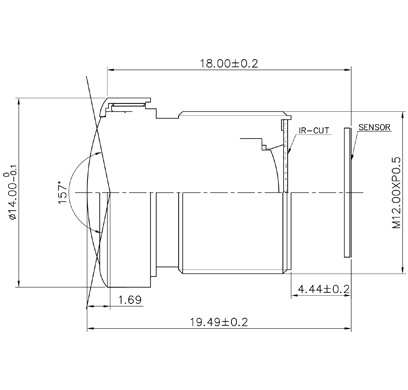

DimensionΦ14×19.49mm
Chief Ray Angle<19±3°<18±3°
Flange BFL/
MBF4.44±0.2mm
Structure4G2P+1 IR
OperationIrisFixed
Focus/
Zoom/
Operating temperature
-30℃～+75℃
