M12 2.2mm 4MP car 180 degree wide angle lens F2.45 1/2.8
$6.30
$5.90
Availability:
In stock
Out of stock
SKU
L2.2-M12W-4M
Lens Mount
M12
Resolution
4MP
Image Sensor Size
1/2.8"

Product Description

Cost effective 4 MP HD board lens, central-edge consistent imaging, suitable for 1080P HD Car rearview camera.

Model:L2.2-M12W-4M
Parameter of Lens
Pixel4MP
Image Format1/2.8″
Max Image Circle
6.5mm
Focal Length2.2mm
ApertureF2.45
MountM12x0.5
Field Angle
DxHxV(°)		1/2.8"182°x152.4°x83°
TV Distortion
<-31.1%

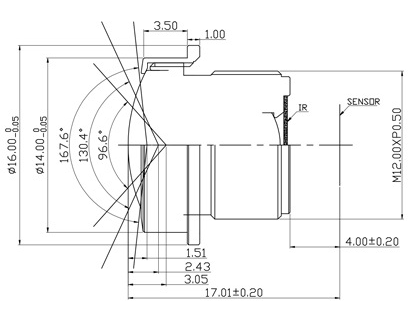

DimensionΦ14x13.01mm
CRA<16.3°
MBFL4mm
Structure
6G+1 IR
OperationIrisFIX
Focus/
Zoom/
Operating temperature-20°C~+60°C
Size


Size tolerance(mm)0-10±0.0510-30±0.10
Angle tolerance±2°
