M12 3.6mm 3MP board lens F2.6 1/2.7
$1.76
$1.76
Availability:
In stock
Out of stock
SKU
L3.6-M12-3MC
Lens Mount
M12
Resolution
3MP
Image Sensor Size
1/2.7"
Aperture
F2.6

Product Description

Cost effective 3 MP HD board lens, central-edge consistent imaging, suitable for 720P and 1080P HD video camera.

Excellent coating process and multi-coated lenses restore the true colors.

Model:L3.6-M12-3MC
Parameter of Lens
Pixel3MP
Image Format1/2.7″
Focal Length3.6mm
ApertureF2.6
MountM12x0.5
Field Angle
DxHxV(°)		1/2.7"120°x96°x72°
1/3"104°x83.2°x62.4°
M.O.D.0.3m

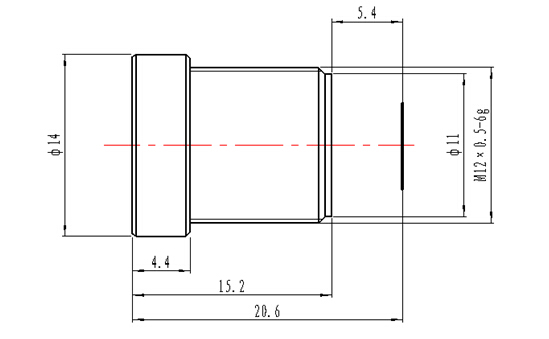

DimensionΦ14x15.6mm
Weight5g
Back Focal Length5mm
OperationIrisFIX
Focus/
Zoom/
Operating temperature-20°C~+60°C
Size



Size tolerance(mm)0-10±0.0510-30±0.1030-120±0.20
Angle tolerance±2°
