ICR223-CS 22mm CS mount IR-CUT dual filters switch 1/1.8 IMX385 IMX178 IMX226
$4.20
$4.20
Availability:
In stock
Out of stock
SKU
ICR223-CS
ICR223-CS 22mm CS mount IR-CUT dual filters switch 1/1.8" IMX385 IMX178 IMX226
Lens Mount
CS

Product Description

Packing list:

1 x CCTV Camera IR-CUT Filter 8MP (Hole distance 22mm）

1 x CS Lens Holder (38mm * 38mm)

-----------------------------------------------------------------------------------------
1/2" And 1 / 1.8" CMOS SONY IMX178 IMX185 Sensor Dedicated

1/1.8" Large size infrared filter


IR-CUT Removable module parameter
Filter can use effective area10.0*8.0mm
Operating environmenttemperature -20~70°C humidity 10-85%
Consumed power0.625w at input 5V / 3.6w at input 12V
Rated current moment0.125A at input 5V / 0.3A at input 12V
A direct current resistance40Ω ±10%
drive voltage3.3-12V
Pulse time100-500ms
Storage environmenttemperature -30~70°C humidity 10-85%

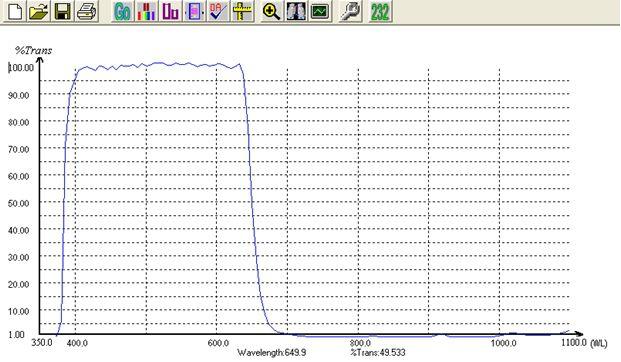

IR-CUT filter:



Wavelength(nm)Transmission(%)Wavelength(nm)Transmission(%)
400nmT>70%650±10nmT=50%
450~560nmT>90%700~1100nmT<5%

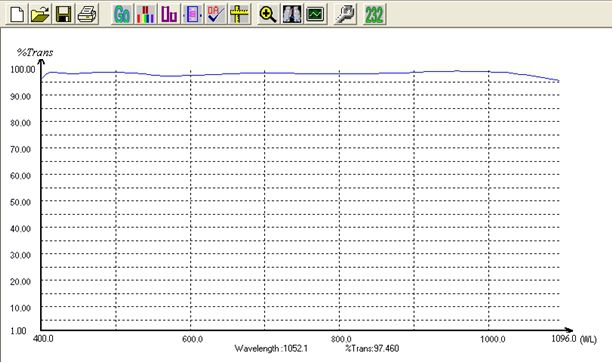

Auto-regressive filter (AR-filter):




Wavelength(nm)400450-700750-1100
Transmission(%)>90%>90%>90%
JudgmentOKOKOK

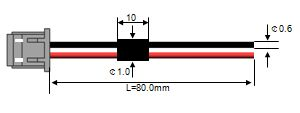

40 ohms resistor wire color is red and black 1.25 * 2 p * 80 mm * 0.6 mm.

pin define.png



Serial numberThe polarity of the powerState
ICR window filter
BlackRed
1+-Color mode in the daytimeIR-CUT filter
2-+Black and White mode in the eveningAR filter









Note:
    Need Screw like below to mound this holder on camera board and fix lens.

Model: PM2.0x4 / PM2.0x5
     L: 4mm / 5mm
     P: 0.4mm
     d: 2mm
     DK: 3.5mm
     K: 1.3mm

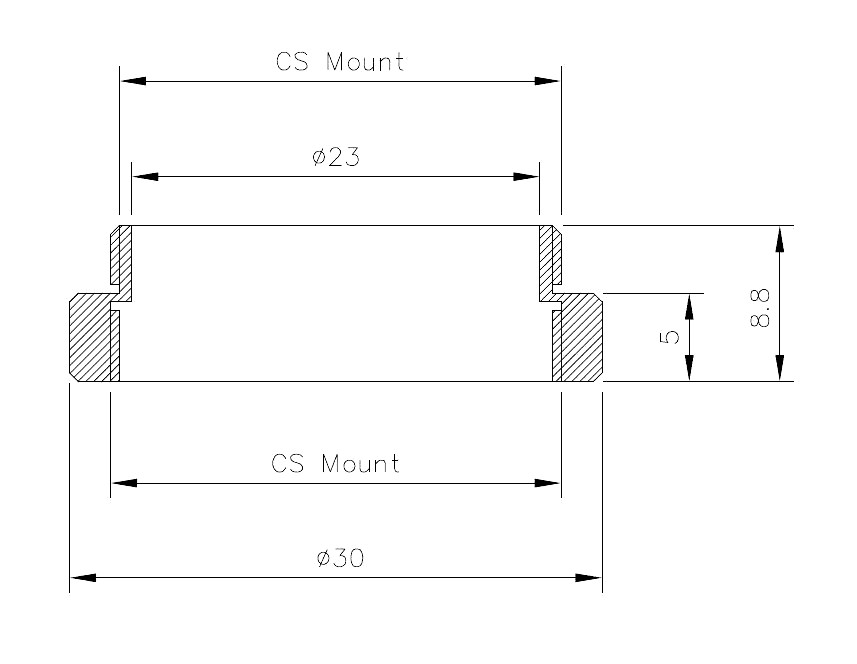

CS to C Lens Mount Adapter 5mm
CS to C Lens Mount Adapter 5mm
CS to C Lens Mount Adapter 5mm
$0.65
$0.65
Availability:
In stock
Out of stock
SKU
ADP-CS-5MM
CS to C Lens Mount Adapter 5mm
Lens Mount
C

Product Description

Height available: 5mm




Package List:

1pcs    CS to C Lens Mount adapter




standard 48V to 12V 38mm POE module for IP camera baord module
standard 48V to 12V 38mm POE module for IP camera baord module
standard 48V to 12V 38mm POE module for IP camera baord module
$3.00
$3.00
Availability:
In stock
Out of stock
SKU
CAEP2
standard 48V to 12V 38mm POE module for IP camera baord module
Port
Ethernet

Product Description

Features:
1, Specifications: Meet the IEEE802.3af standard, class 0
2, safety: a perfect short circuit protection circuit, 1500V high voltage isolation
3, size: 38 * 38mm, suitable for IPC internal integrated design
4, integrated network filter, suitable for all IPC modules
5, compatibility: support for end-span (1,2 +/3,6-) and midspan (4,5-+/7,8-) two power modes
6, wide temperature work: -20 ° to 65 ° stable work


The main parameters:

No.
Parameter
Symbol
Min
Typ
Max
Unit
1Input Voltage
Vin
374857V
2Output voltage
+VDC11.81212.2V
3Output Current
PWR
11.08A
4isolation voltage
ISO
1.481.51.52KV
5Storage temperature
Tj
-40
25120°C
6operating temperature
Tstg
-20
2565°C



(1) Typical value is 25°C, measured value under 48V power supply, for reference design only

(2) The recommended load value in Af mode should not exceed 950mA (including IR-cut switching) to suit different environments

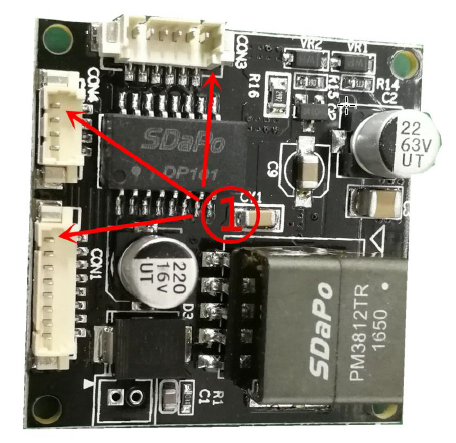

CON1 to Camera Module
1RJ45_1
2RJ45_2
3RJ45_3
4RJ45_6
5RJ45 LED1
6RJ45 LED2
712V+
8GND
CON3 Ether port
1RJ45_1
2RJ45_2
3RJ45_3
4RJ45_6
5RJ45 LED1
6RJ45 LED2
CON4 Port
1DC12V+Power output
2GNDPower GND
3RJ45_4/5
4RJ45_7/8


IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
$248.00
$248.00
Availability:
In stock
Out of stock
SKU
IP19VS226DR
IP19VS226DRC 12MP IP Camera Module HEVC H.265 UHD 4K Sony IMX226 Hi3519V101 Smart Security PCB Board Camera With UG LAN Cable
Hole Pitch
22mm
Image Sensor
IMX226
Resolution
12MP
Image Sensor Size
1/1.7"
Video Coding
Analog/CVBS
H.264
H.265+
MJPEG

Product Description

Model

IP19VS226DRC

                   Camera Type                   H.265+/H.265/H.264/Mjpeg UHD 4K 12.0mp IP Camera Module
                   Camera
                   Image Sensor                    1/1.7"  12.40M-Effective Pixel Color CMOS Image Sensor Sony IMX226CQJ
                   DSP                   Hisilicon 3519V101
                   Effective Pixels                   4072 (H) X 3046 (V) Approx. 12.40M pixels
                   Scanning System                   Progressive
                   Min. Illumination                   0.0001Lux/F1.2
                   S/N Ratio                   ≥50dB(AGC OFF)
                   Lens Mount                   CS Mount(Optional M12)
                   IR-Cut                   Support
                   Day/Night                   Auto(ICR)/Color/B/W
                   WDR                   Digital WDR  >80db
                   White Balance                   Auto
                   Gain Control                   Auto
                   Noise Reduction                   3D-DNR
                   Privacy Masking                   Up to 4 areas
                   Image parameter                   Bir/Con/Hue/Sat/Acu/Gamma
                   Image basic                   Mirror/Flip/LSC/CTB/AntiFogging/Defog
                   Rotation                   Optional (90°/270°)
                   Exposure Time                   Optional (1/12~1/8000s)
                   Image Stabilizer                   Close/Open
                   Video/Audio
                   Video Compression                   H.265+/H.265/H.264/Mjpeg Dual-stream encoding
                   Resolution                   Main Stream: 12.0mp 15fps, UHD 4K 8.0mp 30fps
                   Sub Stream:D1,VGA,CIF,  (1~25/30fps)
                   Frame Rate                   1~25/30fps
                   Bit Rate                   30Kbps~16Mbps, support VBR, CBR
                   Text Overlay                   Channel, Date & Time, Bit Rate
                   Audio Compression                   G.726/G.711A/G.711U
                   Audio bit rate                   16000
                   Sampling rate                   8K
                   Network
                   Data Storage                   Video record, Picture format
                   Trigger                   Manual, Automatic(motion detection, alarm, schedule, cycle )
                   Alarm data transmission                   FTP, E-mail, Browser, CMS
                   Protocol                   TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
                   ONVIF                   ONVIF V2.4
                   Max. User Access                   9 users, IE, Google, Firefox
                   Smart Phone                   Support iPhone, iPad, Android View

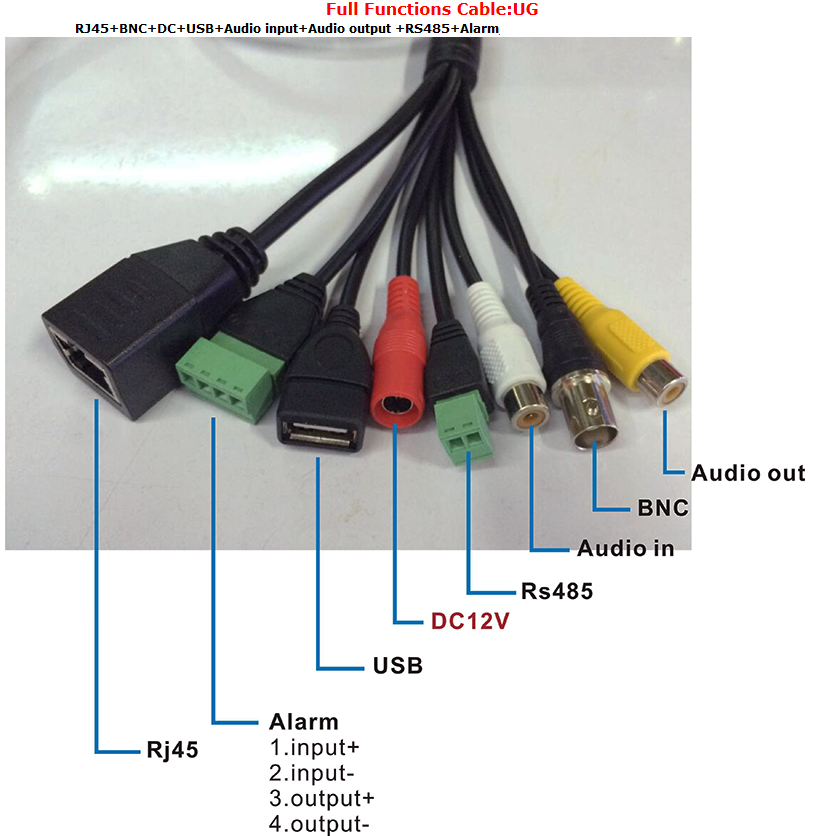

                   Interface
                   Audio                   1ch Audio MIC input/ line input, 1ch output
                   BNC Video out                   Analog CVBS 1ch output
                   RS485                   1ch
                   USB                   1ch (Support 128G USB flash/WIFI/3G Extended)
                   Alarm                   1ch input
                   Reset                   Support
                   General
                   Power Supply                   DC12V
                   Power Consumption                   <3W
                   Working Environment                    -20°C~+55°C , Less than 90% RH
                   Product Size                   38 x 38 x 30mm
                   Net Weight

                       0.15kg

JP1 powerinterface

1

DC 12V

2

video GND

3

Analog video CVBS output

4

GND

JE1 network interface

1

RJ45_1 (TX+)

2

RJ45_2 (TX-)

3

RJ45_3 (RX+)

4

RJ45_6 (RX-)

5

network connect indicator light (green light)

6

network status indicator light(yellow light)

J1 IR-CUT interface

1

IR-CUT control signal 5V

2

IR-CUT control signal 5V

J2 DC auto irisinterface

1

drive-

2

damping-

3

damping+

4

drive+

J5 IR light board interface

1

IR light board12V power output

2

GND

3

IR return signal input(range:0.8V-12V)

4

IR light enable control

JOV1 video loop outport

1

Analog video output

2

GND

J6 function interface

1

audio input

2

audio GND

3

audio output

4

GND

5

reset, resume to default setting

6

alarm input, effective for low level

7

NULL

8

NULL

9

RS_485+

10

RS_485-

JU1

1

GND

2

USB DP

3

USB DM

4

5V power output

J7

1

USB_DP

2

USB_DM

3

5Vpower output

4

GND

5

SD card pull-up resistance power

6

SD card detection signal

7

SD card time colock cable

8

SD card Data cable DATA3

9

SD card Data cable DATA0

10

SD card Data cable DATA1

11

SD card command cable CCMD

12

SD card connect power to enable GPIO

13

SD card Data cable DATA2

14

alarm output GPIO

15

NULL

16

NULL


IP19VS226DR-AZ3611 1/1.7" 12MP 4K Sony IMX226 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens
IP19VS226DR-AZ3611 1/1.7 12MP 4K Sony IMX226 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens
$268.00
$268.00
Availability:
In stock
Out of stock
SKU
IP19VS226DR-AZ3611
IP19VS226DR-AZ3611 1/1.7" 12MP 4K Sony IMX226 Hi3519V101 IP Camera Module with 3.6-11mm 3X Auto Zoom Lens
Hole Pitch
22mm
Image Sensor
IMX226
Resolution
12MP
Image Sensor Size
1/1.7"
Video Coding
Analog/CVBS
H.264
H.265+
MJPEG
Port
Ethernet

Product Description

Product features:

  • Use latest standard H.265 video compression technology, High compression ratio,accurate and stable stream control ,support dual stream

  • Use 1/1.7 inch 12.0MP CMOS, Sony high performance image sensor

  • 3X optical zoom, focus faster, zoom process with clear throughout

  • Built-in automatic night and day double filter switching mechanism, with manual or automatic color

  • Support dual stream

  • Support network disconnection, motion detection, video block intelligence, intelligent defocus detection and alarm

  • Support intelligent coding control

  • Max supports 4 ROI regions of interest

  • Support rich network protocol

  • 1/1.7" 12.0MP/4000*3000@15FPS  1/1.9" 4K 4096*2160@25/30fps

  • Support D-WDR, 3D noise reduction

  • Support ONVIF protocol, GBT28181

Model IP19VS226DR-AZ3611
Camera Type 3.6-11mm 3x Zoom Autofocus lens+4K 8MP 12MP IP Camera Module
Camera
Image Sensor  1/1.7"  12.40M-Effective Pixel Color CMOS Image Sensor IMX226CQJ
DSP Hisilicon 3519V101
Effective Pixels 4072 (H) X 3046 (V) Approx. 12.40M pixels
Scanning System Progressive
Min. Illumination 0.0001Lux/F1.2
S/N Ratio ≥50dB(AGC OFF)
IR-Cut Support
Day/Night Auto(ICR)/Color/B/W
WDR Digital WDR  >80db
White Balance Auto
Gain Control Auto
Noise Reduction 3D-DNR
Privacy Masking Up to 4 areas
Image parameter Bir/Con/Hue/Sat/Acu/Gamma
Image basic Mirror/Flip/LSC/CTB/AntiFogging/Defog
Rotation Optional (90°/270°)
Exposure Time Optional (1/12~1/8000s)
Image Stabilizer Close/Open
Lens
Lens Type 4K 8MP HD Motorized Zoom Lens
E.F.L. 3.6-11 mm
Electric zoom Support
Iris Auto IRIS
Focus Auto Focus
Format 1/1.8"
F No F1.5
Mount Type Φ14
Video/Audio
Video Compression H.265+/H.265/H.264/Mjpeg Dual-stream encoding
Resolution Main Stream: 12.0mp 15fps, UHD 4K 8.0mp 30fps
Sub Stream:D1,VGA,CIF,  (1~25/30fps)
Frame Rate 12mp 15fps, 8mp 1~25/30fps
Bit Rate 30Kbps~16Mbps, support VBR, CBR
Text Overlay Channel, Date & Time, Bit Rate
Audio Compression G.726/G.711A/G.711U
Audio bit rate 16000
Sampling rate 8K
Network
Data Storage Video record, Picture format
Trigger Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission FTP, E-mail, Browser, CMS
Protocol TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF ONVIF V2.4
Max. User Access 9 users, IE, Google, Firefox
Smart Phone Support iPhone, iPad, Android View
Interface
Audio 1ch Audio MIC input/ line input, 1ch output
BNC Video out 1CH Analog CVBS output
RS485 1ch
USB 1ch (Support 128G USB flash/WIFI/3G Extended)
Alarm 1ch input
Reset Support
Optional function#
Memory Card# micro SDHC / SDXC card slot, maximum 128GB (with Alarm 1ch output)
POE # IEEE802.3af
General
Power Supply DC12V
Power Consumption <3W
Working Environment  -20°C~+55°C , Less than 90% RH
Product Size 38 x 38 x 30mm
Net Weight 0.15kg
#Remark: POE,Memory Card Slot, are optional. If need please consult with us.


JP1 powerinterface
1DC 12V
2video GND
3Analog video CVBS output
4GND
JE1 network interface
1RJ45_1 (TX+)
2RJ45_2 (TX-)
3RJ45_3 (RX+)
4RJ45_6 (RX-)
5network connect indicator light (green light)
6network status indicator light(yellow light)
J1 IR-CUT interface
1IR-CUT control signal 5V
2IR-CUT control signal 5V
J2 DC auto irisinterface
1drive-
2damping-
3damping+
4drive+
J5 IR light board interface
1IR light board12V power output
2GND
3IR return signal input(range:0.8V-12V)
4IR light enable control
JOV1 video loop outport
1Analog video output
2GND
J6 function interface
1audio input
2audio GND
3audio output
4GND
5reset, resume to default setting
6alarm input, effective for low level
7NULL
8NULL
9RS_485+
10RS_485-
JU1
1GND
2USB DP
3USB DM
45V power output
J7
1USB_DP
2USB_DM
35Vpower output
4GND
5SD card pull-up resistance power
6SD card detection signal
7SD card time colock cable
8SD card Data cable DATA3
9SD card Data cable DATA0
10SD card Data cable DATA1
11SD card command cable CCMD
12SD card connect power to enable GPIO
13SD card Data cable DATA2
14alarm output GPIO
15NULL
16NULL

-EP for extra POE support


IP16AS385D-AZ3611 1/2" 2MP sony IMX385 Starlight IP camera board 3.6-11mm auto zoom lens
IP16AS385D-AZ3611 1/2 2MP sony IMX385 Starlight IP camera board 3.6-11mm auto zoom lens
$152.00
$152.00
Availability:
In stock
Out of stock
SKU
IP16AS385D-AZ3611
IP16AS385D-AZ3611 1/2" 2MP sony IMX385 Starlight IP camera board 3.6-11mm auto zoom lens
Hole Pitch
22mm
Image Sensor
IMX385
Resolution
2MP 1080P
Image Sensor Size
1/2"
Video Coding
Analog/CVBS
H.264
H.265+
MJPEG
Port
Ethernet

Product Description

  • H.265 video compressing, high compression, stream control accurate, stable, support dual stream

  • 1/2" Sony CMOS IMX385 sensor, high definition 2MP

  • 3X Optics zoom, auto zoom function

  • Built-in automatic day and night dual filter switching mechanism, with manual or automatic color toblack and other switching methods

  • support dual stream

  • Support network disconnect, motion detection, Video masking, intelligent out off focus alarm

  • Smart coding

  • Up to 4 ROI area,

  • abundant network protocol

  • 2MP/1920*1080@25/30/50/60FPS

  • D-WDR, 3D noise reduction

  • Onvif2.4, GBT28181

ModelIP16A385D-AZ3611
IPC
Image sensor1/2-Inch 2MP IMX385
CPU3516A
Effective pixels2592(H)x 1944(V)
Scan systemprogressive
Electronic shutter1/25s~1/10000s
Min illuminatorColor: 0.0001Lux@F1.2,
S/N Ratio≥50dB(AGC OFF)
IR CutICR
WDR>80dB
S/N Ratio3D noise reduction
Privacy maskingUp to 4 privacy masking
Lens type3X zoom lens,YTOT3.6-11mm Motorized lens
Video datesheet
CompressionH.265/H264/MJPEG

Video

Main stream		1080P(1920x1080) / 1280*720

Sub stream

D1(704x576) / VGA(640*480) / QVGA(320x240)
Video frame1 ~ 50fps (50HZ)  1 ~ 60fps (60HZ)
Video bit rate32KB ~ 16Mbps
Video bit ratebrightness, Contrast, saturation, sharpness, BLC  AWB, AGC, AE areadjustable, support privacy masking  OSD  Image eversion90°/ 270°,ICR Switch auto or manual are optional
Smart Function
Smart CodingSupport low bit rate, low latency, enhanced coding of ROI area, up to 4 ROI area
Smart detectionSupport intelligent masking detection ,intelligent out off focus detection
Smart controlSupport smart control alarm open, alarm shut, fault clear, smart noise reduction
Network
Network interface10M/100M
Network protocolIPv4, HTTP, TCP/IP, UDP, RTP, RTCP, UPSP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
Access standardONVIF/GB28181
Client userUp to 8 user at same time
Smart Phoneiphone, ipap, Android
General
PowerDC 12V
Consumption2W(MAX)
Temperature and humidity-10°C~55°C，20-80%RH(no condensation)
Size38X38X70mm
IP37S307 1/2.8" SONY Starlight IMX307 SSC337 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265
IP37S307 1/2.8 SONY Starlight IMX307 SSC337 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265
$19.50
$19.50
Availability:
In stock
Out of stock
SKU
IP37S307
IP37S307 1/2.8" SONY Starlight IMX307 SSC337 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265
Hole Pitch
20mm
Image Sensor
IMX307
Resolution
2MP 1080P
Pixel Size
2.9μm
Video Coding
H.264
H.265+

Product Description

Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (2MP)
2. H.264/H.265/H.265+ video compression standard, G.711/G711A/AAC audio compression standard

3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ



modelES337S307
SOC
SigmaStar SSC337 buildin 128MB RAM
Image sensor1/2.8" 2MP Sony IMX307
Minimum illuminationColor 0.01 Lux
SNR>=50dB
Video processing

PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog function, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable, manual adjustable shutter

Image resolution

Main stream: 3MP@25 FPS, 1080P / 960P / 720P /D1 @30fps

sub stream: D1 / VGA / 640*360 / CIF @30fps

support CBR/VBR

Audio processingAudio linear input/output, G711U/G711A encoding, support two-way voice intercom
Network interfaceRJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design
Protocol supportSupport HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storageNot available
IO interfaceSupports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interfaceSupport active mode and passive mode, need compatible light board to work together
IRCUT interfaceIntegrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions

IE6.0 and above (device embedded Web Server) browser

mobile detection and OSD adjustable
JPEG screenshots

P2P cloud services (danale)

IP filters
provide the SDK (Windows, Android, Linux) development kit

Active infrared function
Active warm light function

automatic zoom (optional)

PTZ linkage

support voice alarm linkage and customizable alarm sound

Conventional parametersDC12V/POE, 1.5W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.06kg
Working temperature-30~70 ℃


Please access the web page by IE browser.

Default IP Address: 192.168.0.123

username: admin

password: 123456


Please contact us for more info.


IP30C46 1/2.9" SSC30KD Security CCTV HD Camera Module board 4MP H.264 H.265
IP30C46 1/2.9 SSC30KD Security CCTV HD Camera Module board 4MP H.264 H.265
$15.50
$15.50
Availability:
In stock
Out of stock
SKU
IP30C46
IP30C46 1/2.9" SSC30KD Security CCTV HD Camera Module board 4MP H.264 H.265
Hole Pitch
20mm
Image Sensor
SC501AI
Resolution
4MP
Video Coding
H.264
H.265+

Product Description

Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (4MP)
2. H.264/H.265/H.265+ video compression standard, G.711 audio compression standard

3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ



modelIP30C501
SOC
SigmaStar SSC30KD
Image sensor1/2.9" 4MP
Minimum illuminationColor 0.01 Lux
SNR>=50dB
Video processing

PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog function, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable, manual adjustable shutter

Image resolution

Main stream: 4MP@30/25 FPS, 1440P, 1080P, 720P, D1 @30fps

sub stream: 720*480, D1 / VGA / 640*360 / CIF @30fps

support CBR/VBR

Audio processingAudio linear input/output, G711 encoding, support two-way voice intercom
Network interfaceRJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design
Protocol supportSupport HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storageNot available
IO interfaceSupports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interfaceSupport active mode and passive mode, need compatible light board to work together
IRCUT interfaceIntegrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions

IE6.0 and above (device embedded Web Server) browser

mobile detection and OSD adjustable
JPEG screenshots

P2P cloud services (danale)

IP filters
provide the SDK (Windows, Android, Linux) development kit

Active infrared function
Active warm light function

automatic zoom (optional)

PTZ linkage

support voice alarm linkage and customizable alarm sound

Conventional parametersDC12V/POE (Optional), 1.7W Max, 38 (L) *38 (W) (without lens), 0.06kg
Working temperature-30~70 ℃



Please contact us for more info.


IP37C43 1/2.9" SSC337 Security CCTV HD Camera Module board 4MP H.264 H.265
IP37C43 1/2.9 SSC337 Security CCTV HD Camera Module board 4MP H.264 H.265
$17.50
$17.50
Availability:
In stock
Out of stock
SKU
IP37C43
IP37C43 1/2.9" SSC337 Security CCTV HD Camera Module board 4MP H.264 H.265
Hole Pitch
20mm
Resolution
4MP
Video Coding
H.264
H.265+

Product Description

Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (4MP)
2. H.264/H.265/H.265+ video compression standard, G.711 audio compression standard

3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ



modelIP37C43
SOC
SigmaStar SSC337
Image sensor1/2.9" 4MP
Minimum illuminationColor 0.01 Lux
SNR>=50dB
Video processing

PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable, manual adjustable shutter

Image resolution

Main stream: 5MP@25fps, 4MP@25fps, 3MP@25fps, 1080P/720P/D1@30fps

sub stream: D1 / VGA / 640*360 / CIF @30fps

support CBR/VBR

Audio processingAudio linear input/output, G711u/G711A encoding, support two-way voice intercom
Network interfaceRJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection
Protocol supportSupport HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storageNot available
IO interfaceSupports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interfaceSupport active mode and passive mode, need compatible light board to work together
IRCUT interfaceIntegrated IRCUT filters switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions

IE6.0 and above (device embedded Web Server) browser

mobile detection and OSD adjustable
JPEG screenshots

P2P cloud services (danale)

IP filters
provide the SDK (Windows, Android, Linux) development kit

Active infrared function
Active warm light function

automatic zoom (optional)

PTZ linkage

support voice alarm linkage and customizable alarm sound

Conventional parametersDC12V/POE (Optional), 38 (L) *38 (W) (without lens), 0.06kg
Working temperature-30~70 ℃



Please contact us for more info.


IP35C35 1/2.7" SC3335 SSC335 Security CCTV HD Camera Module board 4MP H.264 H.265
IP35C35 1/2.7 SC3335 SSC335 Security CCTV HD Camera Module board 4MP H.264 H.265
$12.80
$12.80
Availability:
In stock
Out of stock
SKU
IP35C35
IP35C35 1/2.7" SC3335 SSC335 Security CCTV HD Camera Module board 4MP H.264 H.265
Hole Pitch
20mm
Resolution
3MP
Video Coding
H.264
H.265+

Product Description

Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (4MP)
2. H.264/H.265/H.265+ video compression standard, G.711 audio compression standard

3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4. Two-way audio real-time transmission on the Internet, the video frame rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ



modelIP35C35
SOC
SigmaStar SSC335
Image sensor1/2.7"  SC3335
Minimum illuminationColor 0.01 Lux
SNR>=38dB
Video processing

PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable, manual adjustable shutter

Image resolution

Main stream: 3MP@25fps, 1080P/720P/D1@30fps

sub stream: D1 / VGA / 640*360 / CIF @30fps

support CBR/VBR

Audio processingAudio linear input/output, G711u/G711A encoding, support two-way voice intercom
Network interfaceRJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection
Protocol supportSupport HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storageNot available
IO interfaceSupports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interfaceSupport active mode and passive mode, need compatible light board to work together
IRCUT interfaceIntegrated IRCUT filters switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions

IE6.0 and above (device embedded Web Server) browser

mobile detection and OSD adjustable
JPEG screenshots

P2P cloud services (danale)

IP filters
provide the SDK (Windows, Android, Linux) development kit

Active infrared function
Active warm light function

automatic zoom (optional)

PTZ linkage

support voice alarm linkage and customizable alarm sound

Conventional parametersDC12V/POE (Optional), 38 (L) *38 (W) (without lens), 0.06kg
Working temperature-30~70 ℃



Please contact us for more info.


IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
IP528S334D-M12 NOVATEK NT98528 1/1.8 Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
$119.00
$119.00
Availability:
In stock
Out of stock
SKU
IP528S334D-M12
IP528S334D-M12 NOVATEK NT98528 1/1.8" Sony Starlight IMX334 M12 8MP 4K CCTV IP CAMERA module Board
Image Sensor
IMX334
Resolution
8MP
Pixel Size
2.0μm
Image Sensor Size
1/1.8"
Video Coding
H.264
H.265
Port
Ethernet

Product Description

General Functions:

  • Support intelligent coding control

  • Adopting the latest standard H.265+ video compression technology, high compression ratio, accurate and stable code stream control

  • Max resolution up to 8MP (3840x2160), and it can output 20fps real-time images at this resolution, and the image is smoother.

  • Support 3D digital noise reduction

  • Support Onvif protocol, GB28181 standard


Model

IP528S334D-M12

Camera

Image Sensor

1/1.8" 8MP 4K Sony IMX334 Progressive Scan CMOS

DSP Chip

NOVATEK NT98528 Dual ARM A9 SOC

Flash Memory
NAND 128MB
RAM
DDR3 512MB

Electrical Shutter

1/25s~1/10000s

Min Illumination

Color: 0.01Lux@F1.2;

Black & White: 0.001Lux@F1.2;

Day & Night
Active / Passive / Schedule

Video parameters

Video compression

H.265/H.264

H.265 coding

Stream1 Stream2

Video Bitrate

512 Kbps~16Mbps

Web browser Video Preview

IE, Firefox, Chrome, EDGE


Max resolution

3840 x 2160 @ 20fps

Stream1

2160P(3840x2160) / 960P(1280x960) / 720P(1280x720) / 960x576 / 960x540 / 800x600 / 960x480 / 720x576 / 704x576 / 720x480 / 640x480 / 640x360

Stream2

VGA(640x480) / 640x360

Video frame rate

50Hz: 25fps

60Hz: 30fps

OSD overlay

Support

Network parameters

Network protocol

IPv4, IPv6, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, SNMP, RTMP

Access standard

Support the latest ONVIF

Auxiliary Port

Network Port

1 RJ45 10M/100M Adaptive Ethernet port

Audio Port

1 Audio Input;
1 Audio Output;

General Port

1 Reset port, support one key reset

General parameters

Language
English 简体中文 繁體中文 Pусский 한국어

Power Supply

DC 12V

Power consumption

2W(MAX)

IR-CUT hole distance

22mm

Lens Mount
M12

Size

38(L) * 38(W) *30(H)mm (without Lens)


Default user: admin

Default password: admin

Default IP address: 192.168.12.100



ICR204-M12 8MP 1/2.5" 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera Metal
ICR204-M12 8MP 1/2.5 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera Metal
$1.80
$1.80
Availability:
In stock
Out of stock
SKU
ICR204-M12
ICR204-M12 8MP 1/2.5" 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera Metal
Hole Pitch
20mm
Lens Mount
M12
Image Sensor Size
1/2.5"

Product Description

1/2.5" 20/22mm IR CUT filter M12 lens mount double filter switcher for cctv camera



Inside the camera CCD or CMOS use day and night filter cause the camera image partial color in the daytime, night vision low illumination effect is poor, so day and night filter can't meet the current CCTV surveillance industry application of high-definition digital products, when the camera is color, it will automatically use the pulse signal to make the switch move to IR CUT filter, taken out such the camera image near the object of primary colors, nature. when the camera is night vision, it use the pulse signal to make the switch move to the AR filter once again, this image sensors can be induced to the all wavelength of the light, so that the camera is better image brightness and resolution, was made objects easier to identify.



IR CUT Removable module parameter
Filter can use effective area8.0 * 6.8 mm
Operating environmenttemperature -20~70°C, humidity 10~85%
Consumed power0.274w At input 3.3V
Rated current moment0.083A At input 3.3V
Consumed power3.6w At input 12V
Rated current moment0.3A At input 12V
A direct current resistance40Ω/6<span0Ω±10%
drive voltage3.3-12V
Pulse time100-500ms
<spanHole Distance<strong20mm<span / <strong22mm
Working life100000 times
Storage environmenttemperature -30~70°C, humidity 10~85%

IR-CUT filter:



Wavelength(nm)Transmission(%)Wavelength(nm)Transmission(%)
400nmT>70%650±10nmT=50%
450~560nmT>90%700~1100nmT<5%


Auto-regressive filter (AR-filter):




Wavelength(nm)400450-700750-1100
Transmission(%)>90%>90%>90%
JudgmentOKOKOK



40 ohms resistor wire color is red and black 1.25 * 2 p * 80 mm * 0.6 mm.

pin define.png



Serial numberThe polarity of the powerState
ICR window filter
BlackRed
1+-Color mode in the daytimeIR-CUT filter
2-+Black and White mode in the eveningAR filter



Function:
1. Fixed daytime color cast problems, enhancing the brightness at night. IR-CUT filter switch automatically according to external light along with the strength of automatic switching, making the image to achieve the best results. That is, during the day or night, the dual filter can automatically switch filters, therefore, whether in the next day or night, can get the best imaging results.

 2. According to the instruction automatic switch infrared cut-off and the full spectrum glass, day and night switch, automatic positioning, in order to achieve infrared end filter work during the day time, sunshine is vivid, restore the true color. Full spectrum glass work at night, and increase low illumination, night vision is very clear.

 3. Use on the camera board, to modify the problem of partial color, out of focus, let video images do not lose focus, unbiased color and excellent resolution.

 4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.



Packaging included: 1pcs 20mm/22mm IR-CUT switch M12 lens mount holder

Remarks:
    Need Screw like below to mound this holder on camera board and fix lens.

Model: PM2.0x4 / PM2.0x5
     L: 4mm / 5mm
     d: 2mm
     dk: 3.5mm
     K: 1.3mm
