IP35S307 1/2.8 SONY Starlight IMX307 SSC335 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265
$19.20
$19.20
Availability:
In stock
Out of stock
IP35S307 1/2.8" SONY Starlight IMX307 SSC335 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265
Hole Pitch
Image Sensor
Resolution
Pixel Size
Product Description
Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (2MP)
2. H.264/H.265/H.265+ video compression standard, G.711/G711A/AAC audio compression standard
3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4.
Two-way audio real-time transmission on the Internet, the video frame
rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ
| model | ES335S307 |
| SOC | SigmaStar SSC335 buildin 64MB RAM |
| Image sensor | 1/2.8" 2MP Sony IMX307 |
| Minimum illumination | Color 0.01 Lux |
| SNR | >=50dB |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR,
support WDR, support anti-face overexposing, support defog function,
H.264/H.265/H.265+ coding format, achieve ultra-low storage, code
rate/frame rate adjustable, manual adjustable shutter |
| Image resolution | Main stream: 3MP@25 FPS, 1080P / 960P / 720P /D1 @30fps sub stream: D1 / VGA / 640*360 / CIF @30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711U/G711A encoding, support two-way voice intercom |
| Network interface | RJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Not available |
| IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program |
| LED Board interface | Support active mode and passive mode, need compatible light board to work together |
| IRCUT interface | Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
| Conventional parameters | DC12V/POE, 1.5W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.06kg |
| Working temperature | -30~70 ℃ |
Please access the web page by IE browser.
Default IP Address: 192.168.0.123
username: admin
password: 123456
Please contact us for more info.
Product Description
Cost effective 4 MP HD board lens, central-edge consistent imaging, suitable for 1080P HD Car rearview camera.
| Model: | L2.2-M12W-4M | |
| Parameter of Lens | ||
| Pixel | 4MP | |
| Image Format | 1/2.8″ | |
| Max Image Circle | 6.5mm | |
| Focal Length | 2.2mm | |
| Aperture | F2.45 | |
| Mount | M12x0.5 | |
| Field Angle DxHxV(°) | 1/2.8" | 182°x152.4°x83° |
| TV Distortion | <-31.1% | |
| Dimension | Φ14x13.01mm | |
| CRA | <16.3° | |
| MBFL | 4mm | |
| Structure | 6G+1 IR | |
| Operation | Iris | FIX |
| Focus | / | |
| Zoom | / | |
| Operating temperature | -20°C~+60°C | |
| Size | ||
| ||
| Size tolerance(mm) | 0-10±0.05 | 10-30±0.10 |
| Angle tolerance | ±2° | |
Product Description
Technical Characteristics:
1. 1/2.9-inch 4-megapixel low-light CMOS sensor;
2. Support 2 channels of video and 1 channel of audio, two channels are independent, 20 frames per second active video;
3. H.264/H.265/H.265+ video compression standard, G711U/G711A audio compression standard;
4. Support intelligent analysis, accurate humanoid detection, support area detection;
5. Video bit rate 50Kbps-6Mbps continuously adjustable, frame rate (5-20) continuously adjustable;
6. Support sound linkage alarm and voice customization;
7. Support soft photosensitive infrared, soft photosensitive white light (warm light), ordinary infrared, intelligent dual light;
8. Support JPEG capture;
9. Support wide dynamic, backlight compensation, strong light suppression, digital noise reduction and image flip; 10. 10/100M Ethernet interface support;11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ;
| model | IP37C40 |
| SOC | SigmaStar SSC337 |
| Image sensor | 1/2.9" 4MP GC4653 |
| Minimum illumination | Color 1.0 Lux@F2.0 B&W 0.01@F2.0 |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR,
support WDR, support anti-face overexposing, support defog,
H.264/H.265/H.265+ coding format, achieve ultra-low storage, code
rate/frame rate adjustable, manual adjustable shutter |
| Image resolution | Main stream: 2560*1440@20fps, 2304*1296@25fps, 1080P/720P@30fps sub stream: D1 / VGA / 640*360@30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711u/G711A encoding, support two-way voice intercom |
| Network interface | RJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Not available |
| LED Board interface | *Support active mode and passive mode, need compatible light board to work together |
| IRCUT interface | Integrated IRCUT filters switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
| Conventional parameters | DC12V/POE (Optional), 38 (L) *38 (W) (without lens), 0.06kg |
| Working temperature | -30~70℃ |
Please contact us for more info.
Product Description
For Fisheye lens, Pinhole lens which is short.Couldn't focus with ICR204-M12.
Please check draw of the item and your lens.
1.Product Features
This product is suitable for the IP camera,high-definition cameras millions of pixels,the infrared camera,the bolt and other kinds of photographic equipment,used to filter infrared,let it pass or cut-off,fixed a problem with polarized light during the day,night brightness of ascension.
2.Performance Parameter
No. | Items | Specification |
2-1 | Resistance | 25Ω±3Ω(25°C) 25Ω±3Ω(under the normal temperature25℃) |
2-2 | Rated Voltage |
|
2-3 | Operating Voltage | 3.3~12.0V DC |
2-4 |
Actuation Direction |
|
2-5 |
Actuation | Whole posture,actuation range is incomplete,no movement Do not interference,electrify time of 100~200ms |
2-6 |
Performance Guarantee | Temperature range:-20℃~+80℃, Actuation meets 2-1, 2-2, 2-3 performance. |
3.Reliability Test
No. | Items | Specification |
3-1 |
High And Low Temperature Test | 1.-20℃/after 24h, 6h at room temperature, 2-2 performance Guarantee actuation, its performance can be satisfied. 2.+80℃/after 24h, 6h at room temperature, 2-2 performance Guarantee actuation, its performance can be satisfied.
|
3-2 |
Hot and Cold Impact | Cycle 6 times as required, normal temperature after 6h, test
 0 |
3-3 |
Vibration Test | After shipment in accordance with the standards for packaging,10~55hz frequency.The amplitude is1.0mm,3 direction test,its total test times 30minutes,again after the completion of the test,its performance can meet 2-2 all the features in the project. |
3-4 |
Drop Test | The product is placed on the fall,height of 1m,3the surface/2back,a total of 6times.After further testing, test performance can meet 2-2 all the features in the project. |
3-5 |
Noise | 1.There is no influence of mechanical noise and practical. 2.There is no influence of electrical noise in practical.
|
3-6 |
life |
Temperature:+20℃±5℃,humidity
under the condition of 60% plus or minus 10% Close to Open,Close/1.2s
a cycle,after 50000times actuation,against the foot 2-2 performance
guarantee. |
4.Optical Properties
No. | items | Specification |
4-1 | 640±10nm | |
4-2 | The IR FilterTransmittance | Transmittance between 420-630nm，Tave≧90% |
4-3 | The Dummy Glass Transmittance | Transmittance between 390-1100nm，Tave≧91% |
4-4 | (IR) (AR) | 1.Width(X) ：8±0.05mm 2.Length(Y) :9±0.05mm 3.Thickness(T) :0.21mm |
5.Shipment Inspection Specifications
No. | Items | Condition |
5-1 | Appearance | Nondestructive mark、rusty spot、stain、lack of material |
5-2 | Critical Size | Meet tolerance range |
5-3 | Shipment inspection Specification | 1.Temperature:+20℃±5℃ 2.Often 60% plus or minus25% 3. 4. |
6-4 | Features | Meet Specification clause 2-1~2-6 |
6.Storage Conditions
6-1.Not in high temperature,high humidity,corrosive gas,organic gas deposit environment.
6-2.Do not store more than 6 months.
6-3.Does the welding using lead-free solder(Sn-Ag-Cu)

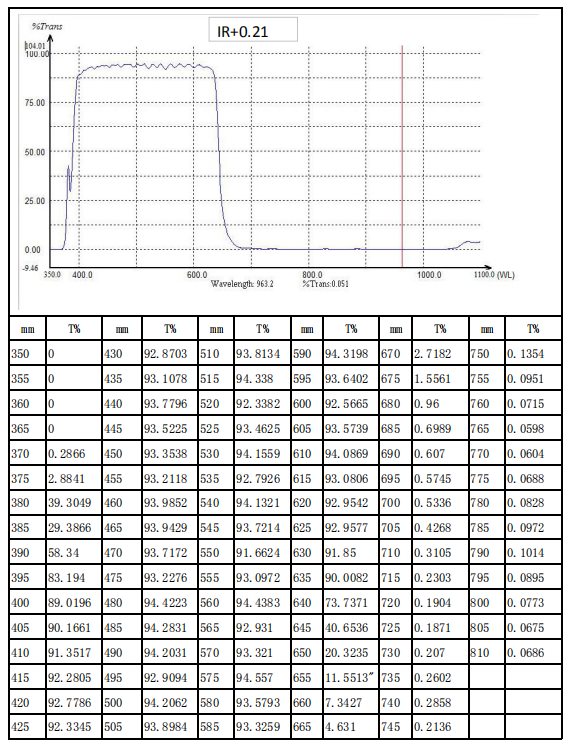

IR Filter Spectrum

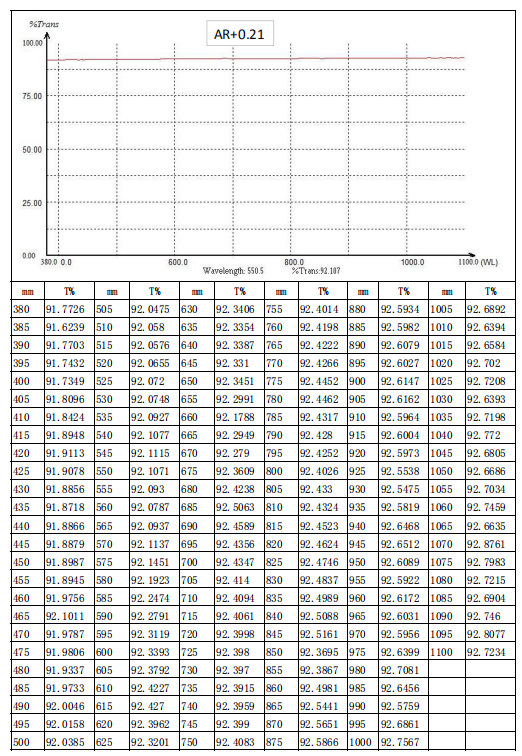

Dummy Glass Spectrum
Function:
1.
Fixed daytime color cast problems, enhancing the brightness at night.
IR-CUT filter switch automatically according to external light along
with the strength of automatic switching, making the image to achieve
the best results. That is, during the day or night, the dual filter can
automatically switch filters, therefore, whether in the next day or
night, can get the best imaging results.
2. According to the instruction automatic switch infrared cut-off and the full spectrum glass, day and night switch, automatic positioning, in order to achieve infrared end filter work during the day time, sunshine is vivid, restore the true color. Full spectrum glass work at night, and increase low illumination, night vision is very clear.
3. Use on the camera board, to modify the problem of partial color, out of focus, let video images do not lose focus, unbiased color and excellent resolution.
4. To filter the hard light to make the picture color soft, to accieve human eyes visual color.
Packaging included: 1pcs 20mm strong magnet IR-CUT switch M12 lens mount holder
Remarks:

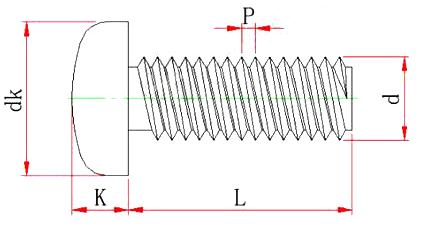

Need Screw like below to mound this holder on camera board and fix lens.
Model: PM2.0x4 / PM2.0x5
L: 4mm / 5mm
d: 2mm
dk: 3.5mm
K: 1.3mm
IP16AS385D 1/2 Sony Starlight IMX385 + HI3516A 2MP 1080P CCTV IP CAMERA Board Security Camera Module upgrade version of IMX185 (2MP, 22mm, IMX385)
$132.00
$132.00
Availability:
In stock
Out of stock
IP16AS385D 1/2" Sony Starlight IMX385 + HI3516A 2MP 1080P CCTV IP CAMERA Board Security Camera Module upgrade version of IMX185 (2MP, 22mm, IMX385)
Hole Pitch
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Video Coding
Product Description
Packing list:
1/2" Sony Starlight IMX385 + HI3516A 2MP 1080P CCTV IP CAMERA Board Security Camera Module upgrade version of IMX185
Double layers 38 x 38mm board,
multiple ports:audio in/out, alarm in, reset, RS485, video link, USB H.264/H.265 video coding, support double streams, Max resolution 1920 x 1080, color 0.001LUX at F1.2, star light low illumination when day only, can be used in low light environment for day only cameras.
H.265, HI3516A+IMX385, 1/2", starlight 0.001Lux & F1.2
2MP IP Camera Board
P2P, Icloud
multiple function:
Audio Input/output
Alarm input
RS485/Reset
USB port
Video looping
double stream: H.264/H.265
Support extention board:
SD card, alarm output etc (-ET9 extension board Optional)
Support motorised lens/POE/Wifi
Model | IP16AS385D(-AI/-AZ/-ET9) 2MP | |
Hardware | ||
CPU | Hi3516A, 1/2" SONY IMX385 COMS Sensor (upgraded version of IMX185) | |
Min illumination | Color: 0.0001Lux@F1.2 | |
S/N Ratio | ≥50dB(AGC OFF) | |
WDR Range | D-WDR；＞80dB | |
Interface | ||
audio/talkback in | 1ch MIC/line in | |
Audio output | 1ch audio out | |
CVBS input | 1ch CVBS output | |
Alarm in/out | 1ch alarm in | |
IO function interface | 1ch reset | |
Interface | 1ch RS485 interface | |
USB interface | 1ch USB interface, support TF card slot (Max 128G) (Optional -ET9 extension board TF Alarm) | |
Video encoding | ||
Encoding format | H.264, Baseline/Main Profile/High Profile encoding；H.265 Main Profile encoding | |
MJPEG | ||
Image resolution | Main stream | 1920*1080, 1-50(60)fps/s |
1280*720, 1-50(60)fps/s | ||
Sub stream | 704*576, 1-50(60)fps/s 640*480, 1-50(60)fps/s | |
640*352, 1-50(60)fps/s 320*240, 1-50(60)fps/s | ||
Video compression | 32Kbps-16Mbps, support CBR/VBR | |
OSD setting | support channel name, date and time, stream information superposition, stacking position adjustable | |
Data transmission and storage | ||
Data storage | Video, Image file | |
Storage mechanism | Manual, auto(cycling, timing, alarm on/off,motion detection) | |
Alarm data trans | FTP, E-mail, browser, management software | |
Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP | |
Wireless protocol | 802.11b/g/n, support WEP, WPA, WPA2 encryption protocol | |
ONVIF | ONVIF2.4 | |
Client browsing | Support up to IE6.0 (built-in Web Server) browser | |
Client APP | Support iPhone, iPad, Android | |
General | ||
Power supply | DC12V 1A/POE（ POE optional） | |
Power device | 3W(MAX) | |
Device size | 38(L) * 38(W) *20(H)mm(without lens) | |
IR-CUT hole | 22mm | |
Device weight | 0.15kg | |
JP1 Power interface | |
1 | DC12V |
2 | Video GND |
3 | CVBS output |
4 | GND |
JE1 Network interface | |
1 | RJ45_1 (TX+) |
2 | RJ45_2 (TX-) |
3 | RJ45_3 (RX+) |
4 | RJ45_6 (RX-) |
5 | Network connection indicator light（green light） |
6 | Network status indicator light（yellow light） |
Sensor board J1 IR-cut interface | |
1 | IR-CUT control signal 5V- |
2 | IR-CUT control signal 5V+ |
Sensor board J2 DC auto light interface（Support automatic aperture model：-AI） | |
1 | drive- |
2 | damp- |
3 | drive+ |
4 | damp+ |
Sensor board J3 Power lens interface (Support Electric lens model：-AZ) | |
1 | Focus A- |
2 | Focus A+ |
3 | Zoom A- |
4 | Zoom A+ |
5 | Zoom B+ |
6 | Zoom B- |
7 | Focus B- |
8 | Focus B+ |
Sensor board J4 No definition | |
J5 Infrared Light board interface | |
1 | Infrared Light board12V power output |
2 | GND |
3 | LED feedback signal input(0.8V-12V) |
4 | Infrared Light enable control |
J6 function interface | |
1 | Audio in |
2 | Audio GND |
3 | Audio out |
4 | GND |
5 | Reset |
6 | Alarm in 1, low level effective |
7 | Alarm in 2（reserve）, low level effective |
8 | Alarm out control GPO, 3.3V level signal |
9 | RS_485+ |
10 | RS_485- |
JU1 USB interface | |
1 | GND |
2 | USB_DP |
3 | USB_DM |
4 | 5Vpower out |
J7 Expansion board | |
1 | USB_DP |
2 | USB_DM |
3 | System |
4 | SDIO Work Clock |
5 | SDIO Data3 |
6 | SDIO Data2 |
7 | SDIO Data1 |
8 | SDIO Data 0 |
9 | System |
10 | SDIO Order |
11 | SDIO Power enable control signal |
12 | SDIO Card detection signal |
13 | SDIO Pull-up resistor power out |
14 | Alarm out control GPO |
15 | System |
16 | DC5V Power out |
IP35S307-AZ27135 1/2.8 SONY Starlight IMX307 SSC335 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265 2.7-13.5mm motorized lens
$33.00
$33.00
Availability:
In stock
Out of stock
IP35S307-AZ27135 1/2.8" SONY Starlight IMX307 SSC335 Security CCTV HD Camera Module board 2MP 1080P H.264 H.265 2.7-13.5mm motorized lens
Hole Pitch
Image Sensor
Resolution
Pixel Size
Product Description
Technical Characteristics:
1. Support 2 channels of video and 1 channel of audio, two channels independent, 30 frames per second active video (2MP)
2. H.264/H.265/H.265+ video compression standard, G.711/G711A/AAC audio compression standard
3. Embedded Web Server, fully support Internet Explore monitoring, configuration, and upgrade
4.
Two-way audio real-time transmission on the Internet, the video frame
rate is automatically adjusted according to the bandwidth
5. Support variable bit rate, while setting the video image quality, it can also limit the video image compression code stream
6. Support DHCP, easy to realize dynamic IP address
7. Video bit rate 64Kbps-3Mbps continuously adjustable, frame rate (5-30) continuously adjustable
8. Support JPEG capture
9. Support movement detection (settable area and sensitivity) and input and output alarm
10. 10/100M Ethernet interface support
11. Support up to 5 users to access at the same time
12. Support sound linkage alarm and voice customization
13. Support regular maintenance function
14. Support IP filtering
15. Support OSD customization
16. Support client remote monitoring software
17. Support mobile phone monitoring (P2P)
18. Support Safari, Chrome, FireFox, Opera, Edge browser
19. Support soft photosensitive infrared, ordinary infrared
20. Support auto focus and PTZ
21. 2.7-13.5mm motorized zoom lens
| model | ES335S307-AZ27135 |
| SOC | SigmaStar SSC335 buildin 64MB RAM |
| Image sensor | 1/2.8" 2MP Sony IMX307 |
| Minimum illumination | Color 0.01 Lux |
| SNR | >=50dB |
| Video processing | PAL/NTSC video standard chooseable, support AWB, support 3D DNR,
support WDR, support anti-face overexposing, support defog function,
H.264/H.265/H.265+ coding format, achieve ultra-low storage, code
rate/frame rate adjustable, manual adjustable shutter |
| Image resolution | Main stream: 3MP@25 FPS, 1080P / 960P / 720P /D1 @30fps sub stream: D1 / VGA / 640*360 / CIF @30fps support CBR/VBR |
| Audio processing | Audio linear input/output, G711U/G711A encoding, support two-way voice intercom |
| Network interface | RJ45, 10/100Mbps adaptive Ethernet interface, 2KV lightning protection design |
| Protocol support | Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional |
| storage | Not available |
| IO interface | Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program |
| LED Board interface | Support active mode and passive mode, need compatible light board to work together |
| IRCUT interface | Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode |
| Business functions | IE6.0 and above (device embedded Web Server) browser mobile detection and OSD adjustable P2P cloud services (danale) IP filters Active infrared function automatic zoom (optional) PTZ linkage support voice alarm linkage and customizable alarm sound |
| Conventional parameters | DC12V/POE, 1.5W Max, 38 (L) *38 (W) *24 (H) mm (without lens), 0.06kg |
| Working temperature | -30~70°C |
| Parameter of Lens | |||||||
| Pixel | 5MP(8MP optional) | ||||||
| Image Format | 1/2.7″ | ||||||
| Focal Length | 2.7-12mm | ||||||
| Aperture | F1.3 | ||||||
| Mount | Φ14 | ||||||
| Field Angle DxHxV(°) | 1/2.7" | 138.2°-36° / 113°-31.4° / 58.4°-17.6° | |||||
| 1/2.8" | 130.9°-34.8° / 108.1° - 30.3° / 56.3°-17.1° | ||||||
| M.O.D | 0.8m | ||||||
| Dimension | Φ28x52.38mm | ||||||
| Weight | / | ||||||
| Back Focal Length | 5.6mm | ||||||
| Optical Distoration | |||||||
| Operation | Iris | Auto | |||||
| Focus | Auto | ||||||
| Zoom | Motorized | ||||||
| Operating temperature | -20°C~+60°C | ||||||
| Size | |||||||
 | |||||||
| Sizetolerance(mm): | 0-10±0.05 | 10-30±0.10 | 30-120±0.20 | ||||
| Angle tolerance | ±2° | ||||||
Please access the web page by IE browser.
Default IP Address: 192.168.0.123
username: admin
password: 123456
Please contact us for more info.
L2.8-M12-4K-F2.4 4G2P 2.8mm M12 8MP Diameter 7.5mm 1/2.8 1/2.5 hd 4K camera lens
$8.80
$8.80
Availability:
In stock
Out of stock
L2.8-M12-4K-F2.4 4G2P 2.8mm M12 8MP Diameter 7.5mm 1/2.8" 1/2.5" hd 4K camera lens
Image Sensor
Lens Mount
Resolution
Image Sensor Size
Aperture
Product Description
Precision Lens Elements, Assure the Stable Quality at Any Environments.
Environment-friendly Materials Used for ROHS and FCC Compliant.
| Model: | L2.8-M12-4K-F2.4 | |||
| Parameter of Lens | ||||
| Pixel | 8MP | |||
| Image Circle | Diameter 7.5mm | |||
| Image Format | 1/2.5" (16:9) 1/2.8" | |||
| Focal Length | 2.8±5% mm | |||
| Aperture | F2.4±5% | |||
| Mount | M12×0.5 | |||
| Field Angle D×H×V(°) | ° | 1/2.5" (IMX274) | 1/2.5" (IMX317) | 1/2.8" (IMX415) |
| D | 112 | 109.5 | 103 | |
| H | 100 | 101.4 | 94 | |
| V | 80 | 68 | 62 | |
| Optical Distortion | <2.0% | |||
| CRA | <19° | |||
| Dimension | Φ18×18.26mm | |||
| Weight | 6g | |||
| Flange Back Focal Length | 3.74mm | |||
| Back Focal Length | 4.92mm | |||
| Structure | 4G2P (+IR650) | |||
| IR | IR-CUT filter 650nm (optional) | |||
| Operation | Iris | FIX | ||
| Focus | / | |||
| Zoom | / | |||
| Operating temperature | -20°C~+70°C | |||
| Size | ||||
 | ||||
H385A 120fps 1080P 1/2 Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module (2MP, 22mm, IMX385)
$92.00
$92.00
Availability:
In stock
Out of stock
H385A 120fps 1080P 1/2" Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module (2MP, 22mm, IMX385)
Hole Pitch
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Product Description
Features:
1/2" 2.0 megapixel CMOS sensor
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color /dual light mode, support PWM dimming
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection
Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)
Specification | |
| SOC | Hi3516AV300，Cortex A7@900MHz |
Sensor | 1/2" Progressive Scan CMOS IMX385 |
Min illumination | Color：0.001Lux@F1.2(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 120 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 120 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi |
Reset | Support |
CVBS output | Not available |
Size | 38x38x18mm，38mm dual board structure |
Weight | 20 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max) |
Pin definition:
Packing list:
H385A 120fps 1080P 1/2" Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module (2MP, 22mm, IMX385)
H662A 90fps Starvis2 1080P 1/2 Sony Starlight IMX662 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
$70.00
$70.00
Availability:
In stock
Out of stock
H662A 90fps Starvis2 1080P 1/2" Sony Starlight IMX662 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
Hole Pitch
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Product Description
Features:
- 1/2.8" 2MP Starvis 2 Sony IMX662 CMOS sensor
- Standard 38*38 dual board structure
- Support H.265+, H.265, H.264 encoding
- Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
- support IR/full color/Dual light mode, support PWM dimming
- Support standard ONVIF, GB28181
- Support motorized zoom (optional), auto iris (optional)
- Provide SDK development kit, support secondary development
- Intelligent functions: motion detection
Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)
| Specification | |
| SOC | Hi3516AV300，Cortex A7@900MHz |
| Sensor | 1/2.8" Progressive Scan CMOS IMX662 |
| Min illumination | Color：0.0001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
| WDR | 100 dB |
| Main Stream Resolution | 90 fps@（1920 × 1080，1280 ×960，1280 × 720） |
| Sub Stream Resolution | 90 fps@（704×576，640×480） |
| Coding | H.265+/H.265/H.264 |
| Bitrate | 32 Kbps~16 Mbps |
| H.264 coding | Baseline Profile/Main Profile/High Profile |
| H.265 coding | Main Profile |
| Bitrate | CBR，VBR |
| OSD | Support |
| Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
| Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
| Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
| Audio sampling bitrate | 8 kHz |
| Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
| Preview channels | 8ch MAX |
| Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
| Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
| Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
| Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
| LED light | Support photosensitive detection input, support PWM dimming |
| USB | 1 USB2.0 (5V Power)，Support 4G/WiFi (Optional) |
| Reset | Support |
| CVBS output | Not available |
| Size | 38x38x18mm，38mm dual board structure |
| Weight | 20 g |
| Working temperature | -20°C ~ +60°C |
| Power consumption | DC12V Power input, 1.2W (Max @30fps), 1.8W (Max @60fps), 2.4W (Max @90fps) |
Pin definition:
Packing list:
H662A 90fps Starvis2 1080P 1/2" Sony Starlight IMX662 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
G327A 30fps Starvis 1080P 1/2 Sony Starlight IMX327 + GK7605V100 2MP 1080P CCTV IP CAMERA Board Security Camera Module
$45.00
$45.00
Availability:
In stock
Out of stock
G327A 30fps Starvis 1080P 1/2" Sony Starlight IMX327 + GK7605V100 2MP 1080P CCTV IP CAMERA Board Security Camera Module
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Product Description
Features:
1/2.8" 2.0 megapixel CMOS sensor
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color mode, support PWM dimming
Support CVBS analog video output (optional)
Support standard ONVIF
Support motorized zoom (optional), auto iris (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarm
Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)
Specification | |
| SOC | GK7605V100，Cortex A7@900MHz |
Sensor | 1/2.8" Progressive Scan CMOS IMX327 |
Min illumination | Color：0.0001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 30 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 30 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi (Optional) |
Reset | Support |
CVBS output | 1ch CVBS analog video output (optional) |
Size | 38x38x18mm，38mm dual board structure |
Weight | 20 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max @30fps) |
Pin definition:
Packing list:
H662A 90fps Starvis2 1080P 1/2" Sony Starlight IMX662 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
H385A 120fps 1080P 1/2 Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module 3.6-11mm Motorized Zoom Lens
$107.00
$107.00
Availability:
In stock
Out of stock
H385A 120fps 1080P 1/2" Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module 3.6-11mm Motorized Zoom Lens
Hole Pitch
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Product Description
Features:
1/2" 2.0 megapixel CMOS sensor
Standard 38*38 dual board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color /dual light mode, support PWM dimming
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection
Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)
Specification | |
| SOC | Hi3516AV300，Cortex A7@900MHz |
Sensor | 1/2" Progressive Scan CMOS IMX385 |
Min illumination | Color：0.001Lux@F1.2(AGC ON), Black & White：0Lux(IR ON) |
WDR | 120 dB |
Main Stream Resolution | 120 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 120 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
| Lens | 3X optical motorized zoom Lens, focal length 3.6-11mm F1.5 1/1.8" |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi |
Reset | Support |
CVBS output | Not available |
Size | 38x38x18mm，38mm dual board structure |
Weight | 20 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max) |
Pin definition:
Packing list:
H385A 120fps 1080P 1/2" Sony Starlight IMX385 + HI3516AV300 2MP 1080P CCTV IP CAMERA Board Security Camera Module (2MP, 22mm, IMX385)
G307S 30fps Starvis 1080P 1/2.8 Sony Starlight IMX307 + GK7205V300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
$36.00
$36.00
Availability:
In stock
Out of stock
G307S 30fps Starvis 1080P 1/2.8" Sony Starlight IMX307 + GK7205V300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
Image Sensor
Resolution
Pixel Size
Image Sensor Size
Product Description
Features:
1/2.8" 2MP Sony IMX307 starlight CMOS sensor
Standard 38*38 single board structure
Support H.265+, H.265, H.264 encoding
Support image flip, support backlight compensation, glare suppression, 3D digital noise reduction, fog transmission, support digital wide dynamic
support IR/full color mode, support PWM dimming
Support CVBS analog video output (optional)
Support standard ONVIF
Support motorized zoom (optional)
Provide SDK development kit, support secondary development
Intelligent functions: motion detection, area intrusion, intelligent PTZ, off-duty alarm
Support extention board:
SD card, alarm output etc (-ET extension board Optional)
Support motorised lens/POE/Wifi (Optional)
Specification | |
| SOC | GK7205V300，Cortex A7@900MHz |
Sensor | 1/2.8" Progressive Scan CMOS IMX327 |
Min illumination | Color：0.001Lux@F1.0(AGC ON), Black & White：0Lux(IR ON) |
WDR | 100 dB |
Main Stream Resolution | 30 fps@（1920 × 1080，1280 ×960，1280 × 720） |
Sub Stream Resolution | 30 fps@（704×576，640×480） |
Coding | H.265+/H.265/H.264 |
Bitrate | 32 Kbps~16 Mbps |
H.264 coding | Baseline Profile/Main Profile/High Profile |
H.265 coding | Main Profile |
Bitrate | CBR，VBR |
OSD | Support |
Image Enhance | Backlight compensation, glare suppression, 3D digital noise reduction, fog transmission |
Image settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance, day/night conversion support |
Audio port | 1ch input, support mic / line in; 1ch output support earphone or amplifier |
Audio sampling bitrate | 8 kHz |
Audio coding format | G.711u law / G.711a law / G.726 / AAC-LC |
Preview channels | 8ch MAX |
Protocol | HTTP, HTTPS, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket, UPNP, PPPOE Etc.，Support ONVIF standard protocol |
Browser | Preview with plugin：IE10，IE11 Preview with local service：Edge，Chrome，Firefox etc. |
Network | 1 RJ45 Ethernet port, 10Mbps/100Mbps adaptive |
Audio | 1ch input, support for microphone or pickup input; 1ch output, support for connecting headphones or amplifiers |
LED light | Support photosensitive detection input, support PWM dimming |
USB | 1 USB2.0 (5V Power)，Support 4G/WiFi (Optional) |
Reset | Support |
CVBS output | 1ch CVBS analog video output (optional) |
Size | 38x38x10.8mm，38mm Single board structure |
Weight | 10 g |
Working temperature | -20°C ~ +60°C |
Power consumption | DC12V Power input, 1.2W (Max @30fps) |
Pin definition:
Packing list:
G307S 30fps Starvis 1080P 1/2.8" Sony Starlight IMX307 + GK7205V300 2MP 1080P CCTV IP CAMERA Board Security Camera Module
